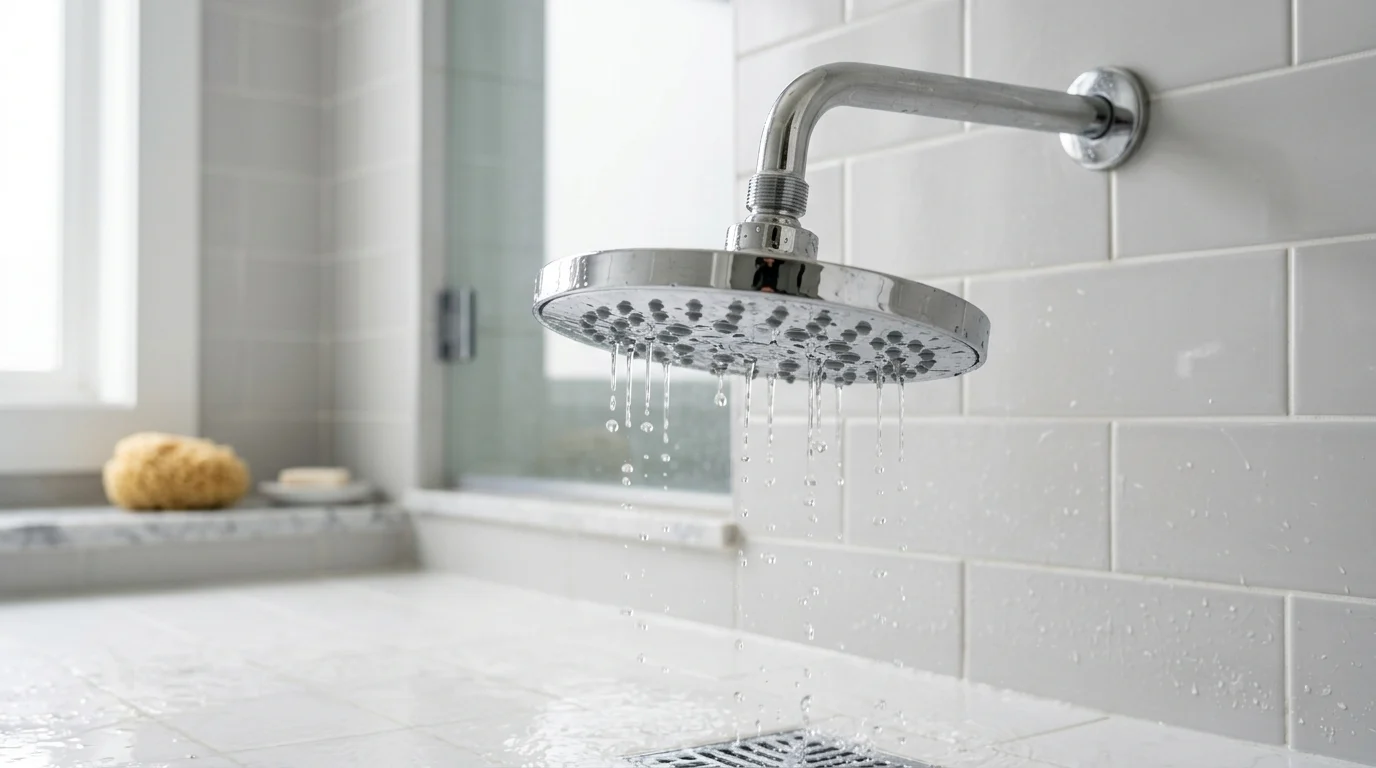

A small shower drip can look harmless, but it often signals worn seals, loose connections, valve failure, or excessive water pressure. Left alone, even a slow leak can waste hundreds of gallons a year and add unnecessary stress to your plumbing and water heater. This guide explains how to tell the difference between normal post-shutoff drainage and a real leak, where to look first, and when the problem is likely inside the Shower Head versus behind the wall. With a systematic check of nozzles, threads, collars, cartridges, and pressure levels, homeowners can make faster repairs and protect the performance of modern water-saving and filtration shower systems.
Why Shower Heads Leak
A leaking shower head is a common household frustration, but fixing it starts with understanding why it is happening. A drip is rarely just an aesthetic annoyance; it is usually a sign of worn-out parts or pressure issues within your plumbing. When water breaches the designated seals of a shower assembly, the resulting leak can lead to substantial water waste and even secondary water damage in your bathroom.
To effectively stop these leaks, homeowners need to differentiate between simple wear and tear on the shower head and deeper plumbing issues. Understanding how water bypasses seals, threads, and internal parts is the first step in executing a permanent, reliable repair.
Common leak types
Categorizing the leak is the first step in identifying the root cause. Continuous dripping from the nozzles typically points to a failure behind the wall in the mixing valve, whereas leaks originating from the collar or swivel joint indicate a worn rubber seal inside the fixture itself. Identifying exactly where the water is escaping narrows down the required fix.
The environmental and financial impact of these leaks adds up quickly. A seemingly negligible slow drip rate of just 10 drops per minute accumulates to approximately 1.44 gallons of wasted water per day, or over 500 gallons annually. High-volume continuous leaks can easily exceed 20 gallons per day, placing unnecessary strain on your water bill and water heater.
Leaks after shutoff
Post-shutoff drainage is frequently misdiagnosed as an active leak. Because of surface tension and water retained within the internal chamber of the fixture, residual water will naturally drain through the nozzles after the main valve is closed. This is a normal physical reaction rather than a mechanical defect.
To differentiate between normal draining and a hardware failure, time the duration of the dripping. If water stops dripping after a few minutes (usually 3 to 5 minutes, though this varies by manufacturer and design), the system is functioning normally and simply clearing the leftover water. Conversely, if the dripping persists well beyond this timeframe, the main shower valve cartridge behind the wall has likely failed to create a watertight seal, allowing continuous water pressure to bypass the shutoff mechanism.
Fixture vs. plumbing issues
Differentiating between a shower head defect and a main mixing valve failure saves time and money during repairs. The shower head itself is essentially a passive fixture; it only disperses the water supplied to it. Therefore, a fixture that leaks continuously when the handle is in the "off" position almost always indicates a failure within the in-wall plumbing, specifically the internal valve cartridge or seat washers.
Systemic pressure issues also play a role. Standard residential plumbing systems are designed to operate optimally between 40 and 60 PSI. If your home's static water pressure exceeds 80 PSI, the excessive force can wear out both the valve cartridges and the shower head seals. In such cases, installing or adjusting a Pressure Reducing Valve (PRV) at the main water inlet may be necessary to protect your entire plumbing infrastructure.

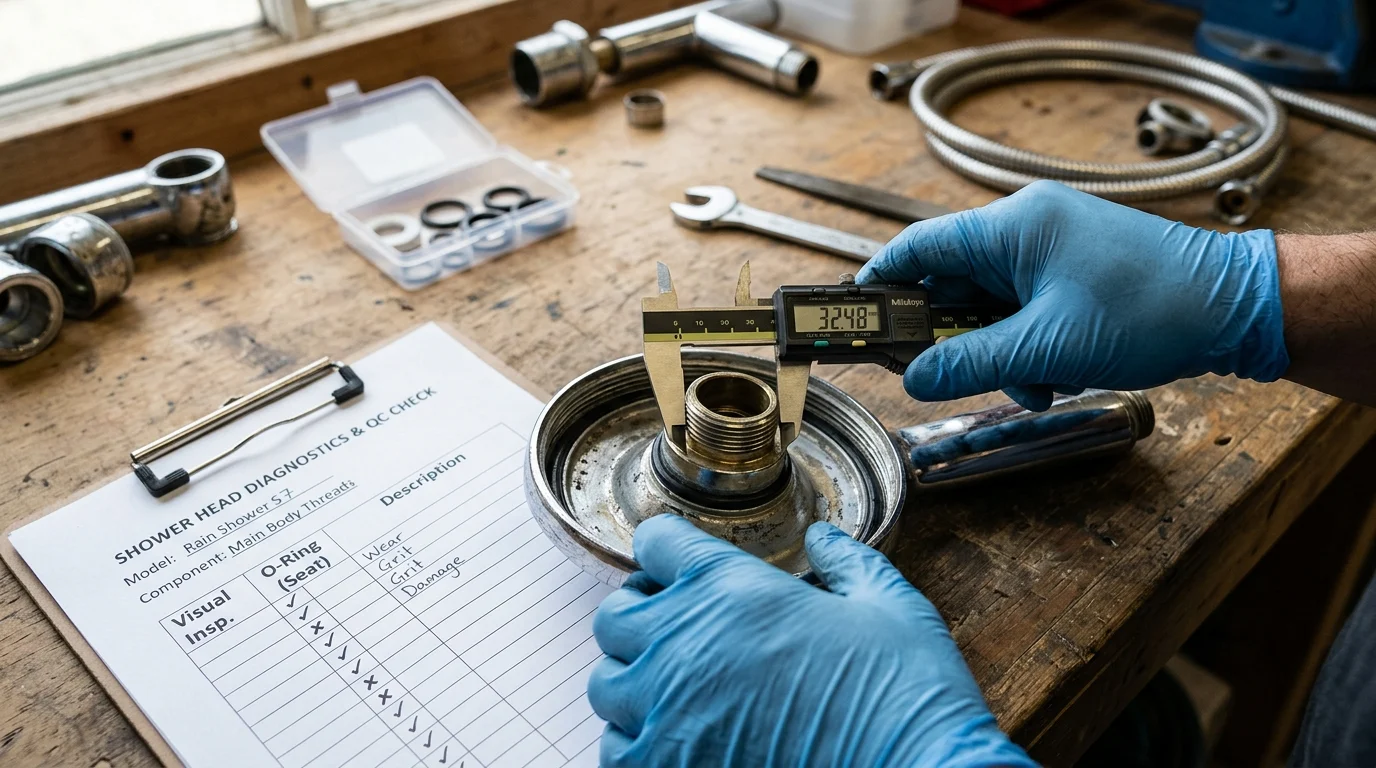

How to Diagnose a Leaking Shower Head
Taking a methodical approach to troubleshooting prevents unnecessary part replacements and ensures you address the true cause of the leak. Diagnostic accuracy relies on isolating the variables, moving systematically from the visible shower head back toward the concealed plumbing behind the wall.
By using simple inspection techniques, you can accurately trace the path of the water, assess the tightness of the connections, and evaluate the impact of hard water on the fixture's performance.
Quick inspection steps
The inspection begins with a visual assessment of the Shower Arm connection, the swivel ball joint, and the faceplate. Wipe the entire assembly completely dry with a cloth, then turn on the water supply. Observe the exact point where water first escapes. A gentle physical check of the threaded connections can also reveal looseness that may contribute to a bad seal.
To isolate the fixture from the valve, ensure the shower handle is fully in the off position, remove the shower head completely, and temporarily cap the 1/2-inch shower arm pipe. If the main shower handle is turned off and water continues to pool or leak from the capped arm, the diagnostic focus must immediately shift to replacing the in-wall valve cartridge, as the shower head itself is not the source of the failure.
Symptoms and likely causes
Correlating specific symptoms with their most probable causes streamlines the repair process. The location and behavior of the leak serve as direct indicators of which internal component needs attention.
| Symptom / Leak Location | Likely Root Cause | Required Diagnostic Action |
|---|---|---|
| Continuous drip when valve is off | Worn mixing valve cartridge | Remove handle and inspect in-wall valve |
| Spraying from the connection pipe | Degraded PTFE tape or loose threads | Unthread, clean, and reapply sealant |
| Leaking from the swivel ball joint | Failed internal O-ring or washer | Disassemble swivel joint and check O-ring |
| Irregular spray or split streams | Mineral buildup in nozzles | Perform acidic descaling soak |
| Leaking along a handheld hose | Ruptured inner tube | Replace entire hose assembly |
Utilizing a symptom matrix like the one above ensures that your DIY efforts are targeted efficiently, reducing both labor time and the cost of replacement parts.
Pressure, scale, and flow restrictor issues
Water pressure and mineral scaling heavily influence a fixture's integrity over time. Modern shower fixtures include internal flow restrictors to meet water conservation standards (like the EPA's 2.5 GPM maximum). These restrictors feature tiny openings that can act as unintended filters, trapping debris and causing localized pressure buildup. Keep in mind that many modern fixtures have non-serviceable flow restrictors, meaning the entire head may need replacement if severely clogged.
Hard water exacerbates this issue. In regions with hard water, calcium and magnesium rapidly form rigid scale deposits. This scale not only clogs the flow restrictor but also forces water sideways against the internal rubber seals, eventually breaching the O-rings and causing leaks at the seams of the fixture casing.
Common Parts That Cause Leaks
The internal design of modern shower fixtures relies on a precise arrangement of rubber seals, plastic components, and threaded metal fittings. When these materials are subjected to continuous temperature changes, water pressure, and hard water exposure, they inevitably wear out.
Understanding these components is essential for selecting appropriate replacement parts. Substituting inferior materials or incorrect sizes during a repair will result in premature failure and recurring leaks.
Washers, gaskets, and O-rings
Washers and O-rings serve as the primary defense against leaks at connection points. These components are typically manufactured from durable rubber materials like Nitrile or EPDM, which are preferred in plumbing due to their resistance to temperature changes and water treatments.
Over a typical lifespan of a few years, hot and cold cycles cause these rubber seals to dry out, flatten, and lose their elasticity. Once they undergo this "compression set," they can no longer rebound to maintain a watertight barrier against the metal surfaces, leading to drips around the collar or swivel joint.
Mineral buildup and clogged nozzles
As mentioned earlier, mineral buildup is a leading cause of irregular spray patterns and internal pressure issues. As water evaporates from the nozzle tips, it leaves behind calcium and magnesium crystals. Over time, these microscopic deposits aggregate, calcifying the flexible silicone nozzles and obstructing the water's path.
When nozzles are restricted, the internal pressure within the shower head increases, forcing water to seek alternative exit routes—typically through the threaded collar or the faceplate seam. Removing this scale requires a simple chemical soak rather than mechanical force. Submerging the affected components in a standard descaling solution of household white vinegar for 4 to 6 hours dissolves the deposits without damaging the surrounding chrome or brushed nickel finishes.
Hoses, threads, and finish damage
Threaded connections on shower arms utilize standard 1/2-inch tapered pipe threads. Because they are tapered, they rely on a sealing agent—like plumber's tape or pipe dope—to achieve a watertight joint. If the threads become cross-threaded or damaged, the resulting gaps will allow pressurized water to escape.
Handheld shower setupsintroduce additional vulnerabilities through the Flexible Hose assembly. These hoses usually consist of a metal or PVC outer sheath protecting a thin rubber inner tube. Continuous flexing, twisting, and exposure to high-temperature water can cause the inner tube to rupture or detach from the end fittings. Once the inner tube is compromised, water will visibly leak through the interlocking joints of the outer metal sheath.
How to Fix a Leaking Shower Head
Fixing a shower head is highly accessible for most homeowners, but it requires basic care with tools and materials. Improper techniques—such as over-tightening or incorrect thread preparation—can permanently damage the fixture or the in-wall plumbing.
A methodical approach to disassembly, cleaning, and reassembly guarantees that the new seals and thread lubricants work properly, restoring a watertight seal. Safety Note: Always ensure the shower valve is fully turned off before beginning. If you are working on the valve itself, shut off the main water supply to the house.
Step-by-step repair process
Start by using non-marring tools to remove the shower head. Wrapping a cloth around the fixture before using an adjustable wrench or slip-joint pliers prevents scratching the protective finish. Once removed, the internal cavity and the threads of the shower arm must be thoroughly cleaned. Avoid using harsh brass wire brushes on soft metal threads, as this can cause damage; instead, use an old toothbrush or a stiff nylon brush to remove degraded tape, scale, and debris.
During reassembly, avoid the temptation to over-tighten. Threaded plumbing fixtures utilizing rubber gaskets should never be subjected to excessive force. The general rule of thumb is to tighten the collar hand-tight, followed by a quarter to a half turn with a wrench. Exceeding this will crush the rubber washer, causing immediate failure and guaranteeing a leak.
When to use plumber’s tape
Plumber's tape (PTFE tape) is essential for lubricating and sealing tapered pipe threads. Its primary function is to reduce friction during assembly, allowing the tapered threads to seat deeply while filling microscopic gaps. Alternatively, liquid pipe thread sealant (pipe dope) can be used alongside or instead of tape for a reliable seal.
If using tape, application technique is key. Wrap the tape about 2 to 3 times around the threads in a clockwise direction (matching the direction you will turn the shower head). Applying the tape counterclockwise will cause it to unravel as the fixture is tightened. Keep in mind that the exact number of wraps can vary based on the tape's thickness and the specific fixture. Crucially, plumber's tape should neverbe applied to parallel threads that rely exclusively on a rubber washer or O-ring for sealing (such as the connection between a handheld Shower Hose and its bracket), as the tape will interfere with the gasket's ability to compress.
Fixes for fixed and handheld shower heads
Repairing fixed shower heads typically involves addressing the swivel ball joint. This requires unthreading the locking collar, extracting the primary washer, and replacing the internal O-ring that seats against the pivot ball. Applying a thin coat of plumber's silicone grease to the new O-ring prior to reassembly reduces friction and prevents the rubber from tearing when you adjust the shower head.
Handheld shower units present distinct repair challenges. If a leak originates at the bracket where the hose connects, replacing the flat rubber washer inside the hose nut is usually the standard fix. However, if the diverter valve (the switch that changes water flow between the main head and the handheld unit) is leaking, the internal cartridge may need to be replaced, as simply tightening the external nuts cannot resolve an internal bypass leak.
When to Replace the Shower Head
All plumbing fixtures have a finite lifespan dictated by material fatigue, hard water exposure, and daily wear. While routine maintenance and simple repairs can significantly extend a fixture's usability, there is a practical threshold where replacement becomes the better choice.
Homeowners must evaluate the cost and effort of continuous repairs against the performance enhancements, water efficiency, and reliability offered by modern replacement units.
Repair vs. replacement factors
The decision to repair versus replace hinges on a straightforward lifecycle analysis. A high-quality brass-bodied shower fixture might last 10 to 15 years, whereas plastic models typically degrade within 5 to 7 years. If a fixture is approaching the end of its lifespan, investing time and money into replacing internal seals yields diminishing returns.
| Decision Factor | Favor Repair | Favor Replacement |
|---|---|---|
| Age of Fixture | < 5 Years | > 10 Years |
| Cost of Parts/Labor | < 25% of new unit cost | > 50% of new unit cost |
| Material Condition | Intact finish, no corrosion | Pitted chrome, cracked plastic |
| Water Efficiency | Meets current 2.5 GPM standard | Legacy unit (>3.0 GPM) |
| Systemic Compatibility | Matches existing valve trim | Upgrading entire shower suite |
As a general rule, if the combined cost of replacement parts and your time exceeds 50% of the retail value of an equivalent new unit, full replacement is usually the most practical choice.
Preventive maintenance tips
Implementing simple preventive maintenance drastically reduces the frequency of leaks and extends the life of rubber components. Bi-annual descaling using a mild vinegar soak prevents the localized pressure spikes that force water past O-rings. Additionally, regularly inspecting and rinsing the small filter screens located behind the shower head ensures that municipal sediment does not clog the flow restrictor.
Water quality management is the ultimate preventive measure. Homes operating with very hard water should consider implementing whole-house water softening systems. By removing the calcium and magnesium before they reach the bathroom fixtures, the primary catalyst for nozzle calcification and subsequent pressure-induced leaks is greatly reduced.
When to call a plumber
While surface-level fixture replacements are highly manageable DIY projects, specific diagnostic outcomes necessitate professional plumbing intervention. If a leak persists continuously despite the shower head being removed and the arm capped, the failure lies within the in-wall valve. Attempting to extract a seized brass cartridge from an in-wall valve body without specialized tools frequently results in severe damage to the plumbing behind the wall.
Furthermore, if your inspection reveals heavy corrosion on the pipe fittings secured behind the drywall, or if there are indications of water damage (such as softened drywall or peeling paint) surrounding the shower arm, a licensed plumber must be contracted. These symptoms indicate that pressurized water is escaping behind the moisture barrier, posing a severe risk of structural rot and mold growth that cannot be resolved by merely servicing the external shower head.
Key Takeaways
- Time the dripping after shutoff, because water that stops within about 3 to 5 minutes is usually normal drainage rather than an active leak.
- Locate the leak source before repairing, since nozzle drips, thread leaks, collar leaks, and swivel joint leaks point to different causes.
- A slow leak of 10 drops per minute can waste about 1.44 gallons per day, so even minor dripping should not be ignored.
- If the shower head drips continuously while the handle is off, inspect the in-wall valve cartridge or seat washers instead of blaming the fixture first.
- Keep household water pressure near the typical 40 to 60 PSI range, because pressure above 80 PSI can damage seals, cartridges, and shower head components.
Frequently Asked Questions
Why does my shower head drip after I turn the water off?
A few minutes of dripping is usually just trapped water draining from the shower head. If it continues beyond about 3 to 5 minutes, the issue is more likely a worn shower valve cartridge or washer behind the wall.
Is the shower head always the cause of a leak?
No. The shower head is usually a passive fixture. Leaks at the collar, swivel joint, or threads often come from seals or tape, while continuous dripping from the nozzles when off usually points to the in-wall mixing valve.
How much water can a leaking shower head waste?
Even a slow drip of about 10 drops per minute can waste roughly 1.44 gallons per day, adding up to more than 500 gallons per year. Larger continuous leaks can waste 20 gallons or more each day.
What water pressure is safe for shower heads?
Most residential systems work best around 40 to 60 PSI. Pressure above 80 PSI can accelerate wear on valve cartridges, rubber seals, and shower head connections, increasing the risk of leaks.
Can a new shower head stop leakage?
A new shower head can help if the leak comes from the fixture, threads, gasket, or swivel joint. If water keeps dripping when the handle is off, replacing the shower head alone usually will not fix the failed valve cartridge.
